Your location¶
Your location is displayed on the map with the position marker:
The position marker¶
If you are standing still, the position marker points in the direction in which you point your device. If you are moving, the position marker points in the direction in which you are moving.
The arrow in the status bar indicates that the location services are currently in use. This can cause faster battery consumption than usual. Therefore pay attention to the battery level when using Topo GPS.
The default position marker icon is red, you can change it to another color via Menu > More > Settings > Styles > Position. This might to increase the visibility of the position marker ont the map.
To center the map on your location, tap the center button on the left hand side of the dashboard.
Recommended Android Settings¶
To enable location access for Topo GPS, first go in the Android settings app to Apps > Topo GPS > Permissions. Here enable the location permission. And enable ‘Use precise location’ as well.
For best performance with recording routes it is recommended to enable notifications in Apps > Topo GPS > Permissions > Notifications for the Topo GPS route recorder. Also ‘Allow background battery usage’ in Apps > Topo GPS > App battery usage.
Current location screen¶
If you tap the position marker, the current location screen will appear. You can also open this screen by pressing long on the position button on the dashboard.
The current location screen shows details of your current location. In the current location screen you can also save your current location into a waypoint and export your current location with the buttons in the bottom toolbar. An example of the current location screen is displayed below:

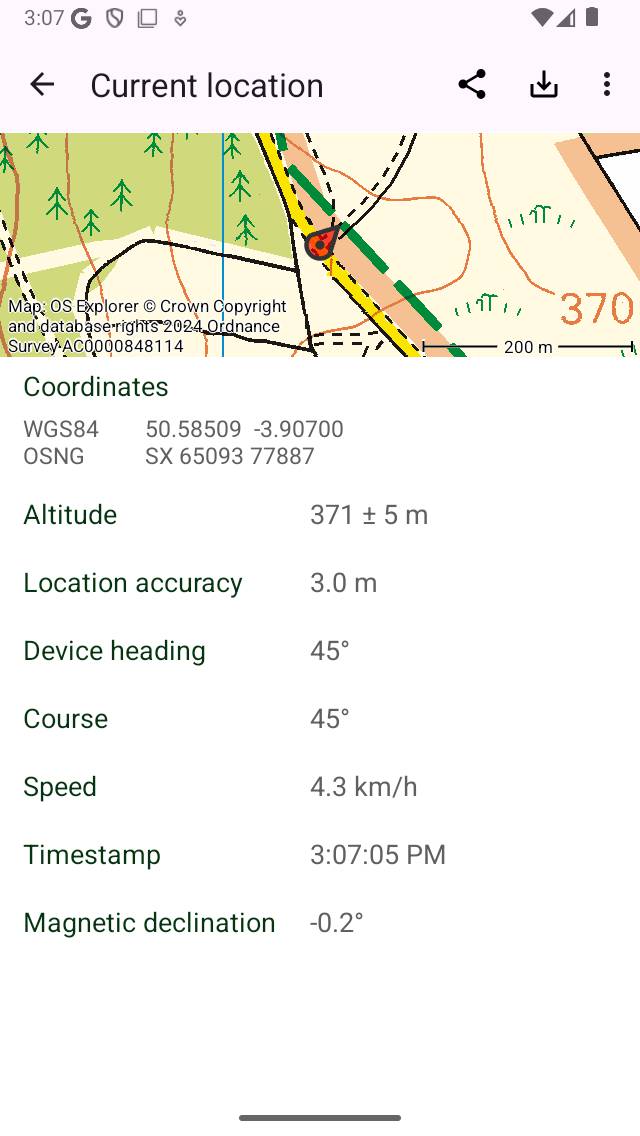

The current location screen (top part).¶
In the location information screen you find subsequently the following information:
Map: A map of the surroundings of your current location. You can also zoom and move this map.
Coordinates: The coordinates of your current location in various formats. You can change the displayed coordinate systems by tapping on the more icon on the top of the screen. You can tap long on the coordinates to select and copy it.
Address: The approximate address of your location. If you move this address will be updated automatically. If you press long on the address you can select and share it. If you press ‘Edit’ you can disabled automatic lookup of addresses in the current location screen.
Location accuracy: The accuracy of the location determination. This accuracy means that your true location has a high probability of being inside a circle with a radius equal to the accuracy. If the GPS signal is good the location accuracy is 5 m or less.
Altitude: The current altitude of the device above the WGS84 geoid with the accuracy.
Speed: The current speed of the device.
Course: The direction which respect to the true north in which the device is moving.
Device heading: The direction with respect to the true north in which the device is pointing.
Timestamp: The exact time at which the displayed location was obtained.
Magnetic declination: This is the angle between the magnetic north pole and true north pole (geographic north). If the magnetic north lies east of the true north, the declination is positive. If the magnetic north lies west of the true north, the declination is negative.
If you read of a direction from a magnetic compass it is always relative to the magnetic north. To obtain the direction relative to the true north you have to add the magnetic declination to the reading of the magnetic compass. The magnetic north pole changes location over time, therefore the magnetic declination varies in time and from position to position.
Changing current location screen¶
By tapping ‘More > Displayed coordinates types’, the displayed coordinate types can be set so that only coordinate systems which are of interest to you are displayed.
Saving current location¶
By tapping ‘Save’ in the bottom right of the current location screen you can save your current position as a waypoint. The waypoint will be given a title based on settings which you can change by tapping ‘Edit > Waypoint title’ in the current location screen. The automatic waypoint title can be set to either:
Time: The current time
Date and time: The current date and time
Number (next: ..): A number. If you press ‘Reset’ it will be reset to 1. This setting is useful if you want to save your location several times and number the waypoints.
If you press ‘Save’ your current position will be saved immediately as a waypoint and added to the map. A pop-up will show that the waypoint was saved successfully as you can see in the figure below:
Saving your current location as a waypoint.¶
